Type | ELECL |
---|---|
Function | - |
Application | GP |
10000

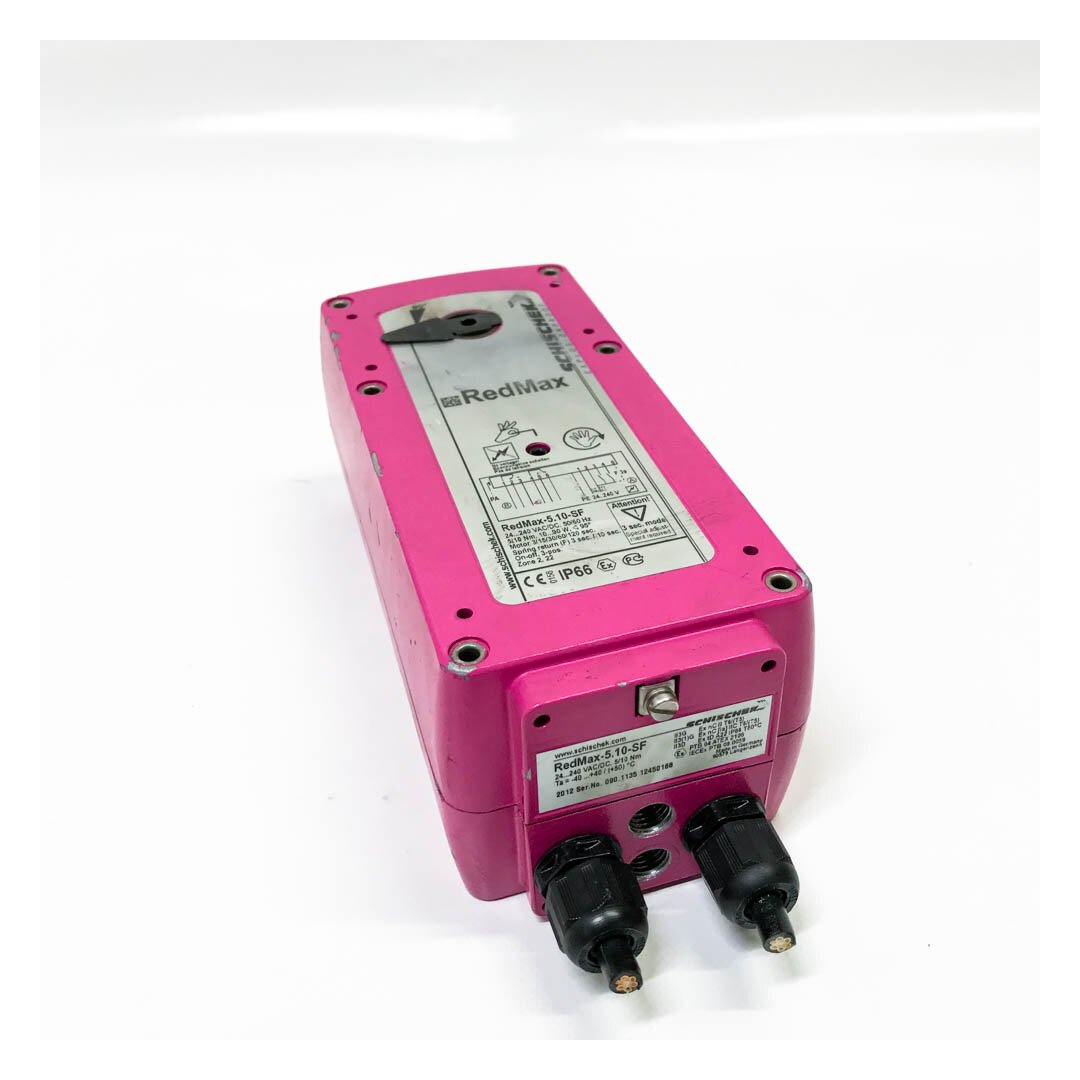

Spring return actuator 5/10Nm REDMAX-5.10-SF
Electric 90° rotary actuators RedMax size S for valve operation in hazardous locations
ATEX 2014/34/EU | Explosion-proof | Zone 2, 22 | 5-30 Nm | With or without spring return | Open-close, 3-point or modulating | IP66
Maker : SCHISCHEK
Model No. : RedMax-5.10-SF
Complete with : Terminal box RedBox-Y/S 1x & Mounting bracker MKK-S 1x
orque
Power supply, self-adjustable
Frequency
Rotation angle
Motor running time adjustable
Spring return
Operating mode
Feedback*
Quadratic axis connection
Housing protection
Ambient temperature
Power supply
Dimensions
Weight
Explosion-proof for all
Installation area
Certification
5-30 Nm
24-240 V AC/DC
50-60 Hz
95 °
3,15,30,60,120 sec/90°
~ 1, 3, 10 sec/90° (depending on type)
Open-close, 3-point, modulating 0-10 V DC, 4-20 mA
0-10 V DC, 4-20 mA
12 x 12 mm
IP66
-40°...+40°C (at T6) / -40°...+50°C (at T5)
Cable approx. 1 m
L × W × H = 210 × 95 × 80 mm
Aluminum approx. 3.5 kg, VA approx. 7 kg
Gases, mists, vapors, dusts
Zone 2, 22
ATEX, IECEx, EAC, INMETRO, UL¹, CSA¹
60 to 80 days
