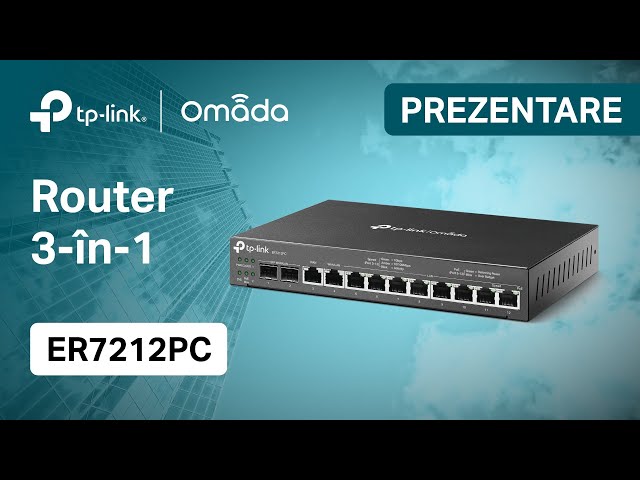

Features: 3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether.
Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
Centralized Management: Cloud access and the Omada app offer convenience and easy management.
Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
Easy Installation: Fanless and compact design for desktop and wall mounting.


Feature:

3-in-1 Router: Integrates router, PoE+ output, and Omada centralized management ability altogether.
Professional Hardware: Dual-Core CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports.
Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port.
110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*.
Centralized Management: Cloud access and the Omada app offer convenience and easy management.
Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections.
Easy Installation: Fanless and compact design for desktop and wall mounting.

HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
Interface
• 2 Gigabit SFP WAN/LAN ports
• 1 Gigabit WAN port
• 1 Gigabit LAN/WAN port
• 8 Gigabit LAN ports
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Fan Quantity: Fanless
Button: Reset Button
Power Supply: 53.5VDC/2.43A Adapter
PoE Budget: 8 ports PoE+ output, 110 W PoE Budget
Flash: 8Mb Nor + 4 GB EMMC
DRAM: 1 GB DDR3
LED: PWR, SYS, CLOUD, PoE Max, SFP 1, SFP 2, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Protection: 4 kV surge protection
Enclosure: Steel
Mounting: Desktop/Wall-mount
Max Power Consumption
• 133.2W with PoE Max
• 13.88W without PoE


PERFORMANCE
Concurrent Session: 24,980
New Sessions /Second: 1,900
BASIC FUNCTIONS
WAN Connection Type
• Static IP
• Dynamic IP
• PPPoE
• PPTP
• L2TP
MAC Clone: Modify WAN MAC Address

ADVANCED FUNCTIONS
ACL: IP/Port/Protocol/Domain Name Filtering
Advanced Routing
• Static Routing
• Policy Routing
Bandwidth Control: IP/Port-based Bandwidth Control

SECURITY
Filtering: URL Filtering
Attack Defense
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control: Source/Destination IP Based Access Control

Dimensions ( W x D x H )
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Package Contents
1x ER7212PC
1x Power Adapter
1x Power Cord
1x Quick Installation Guide

Delivery Terms: 14 to 30 days
